TOP 5 LOW END GRAPHICS CARD

This graphic card’s list is sorted from the high to low specification.

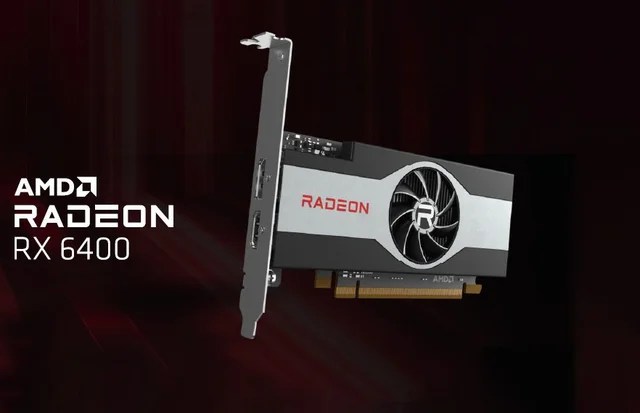

1. AMD RADEON RX 6400

AMD Radeon RX 6400 mid-range GPU for desktop has been launched. The graphics card comes with AMD’s Smart Access Memory technology that is claimed to give a performance boost in gaming. It is aimed at those who seek a compact offering to fit in a small-sized PC. As per a report, the AMD Radeon RX 6400 GPU has been launched with partners including ASRock, Biostar, Gigabyte, MSI, PowerColor, Sapphire, and XFX. The unit has a maximum graphics memory size of 4GB, and has a base frequency of 2039MHz.

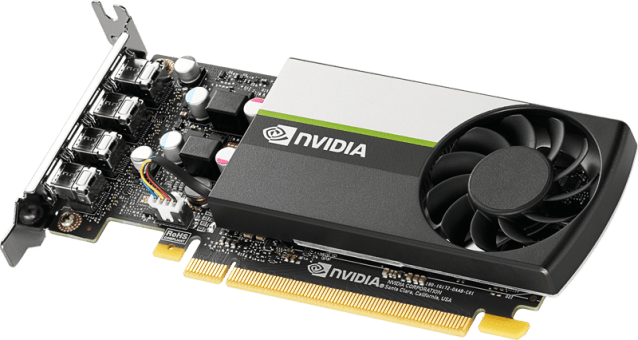

2.NVIDIA QUADRO T600

The Nvidia T600 Laptop GPU (or Quadro T600 for laptops) is a professional mobile graphics card that is based on the Turing architecture (TU117 chip). It is similar to the consumer GTX 1650  with 896 CUDA cores and a 128 Bit memory bus for GDDR6 graphics memory (10 Gbits). The chip is manufactured in 12nm FinFET at TSMC. The T600 was introduced as a refresh together with the T1200  and should be slightly slower than the older Quadro T1000  (2.6 versus 2.5 TFLOPS peak SP performance).

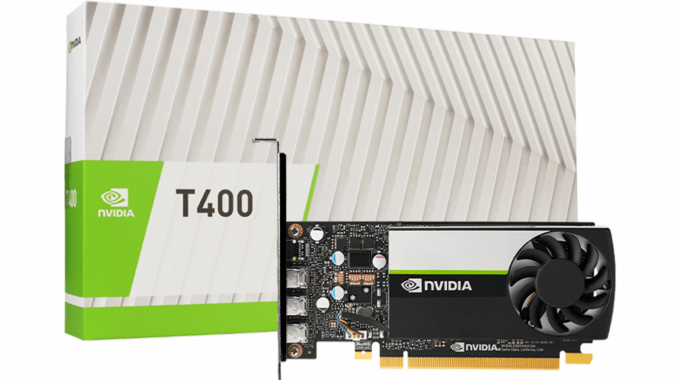

3.NVIDIA QUADRO T400

The T400 is a professional graphics card by NVIDIA, launched on May 6th, 2021. Built on the 12 nm process, and based on the TU117 graphics processor, the card supports DirectX 12. The TU117 graphics processor is an average sized chip with a die area of 200 mm² and 4,700 million transistors. Unlike the fully unlocked GeForce GTX 1650, which uses the same GPU but has all 896 shaders enabled, NVIDIA has disabled some shading units on the T400 to reach the product’s target shader count. It features 384 shading units, 24 texture mapping units, and 16 ROPs. NVIDIA has paired 2,048 MB GDDR6 memory with the T400, which are connected using a 64-bit memory interface. The GPU is operating at a frequency of 420 MHz, which can be boosted up to 1425 MHz, memory is running at 1250 MHz (10 Gbps effective).Being a single-slot card, the NVIDIA T400 does not require any additional power connector, its power draw is rated at 30 W maximum. Display outputs include: 3x mini-DisplayPort 1.4a. T400 is connected to the rest of the system using a PCI-Express 3.0 x16 interface.

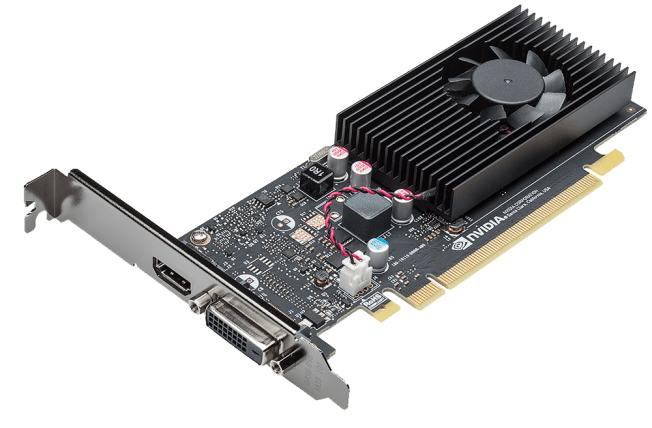

4. GT 1030

The GeForce GT 1030 was an entry-level graphics card by NVIDIA, launched on May 17th, 2017. Built on the 14 nm process, and based on the GP108 graphics processor, in its GP108-300-A1 variant, the card supports DirectX 12. This ensures that all modern games will run on GeForce GT 1030. The GP108 graphics processor is a relatively small chip with a die area of only 74 mm² and 1,800 million transistors. It features 384 shading units, 24 texture mapping units, and 16 ROPs. NVIDIA has paired 2,048 MB GDDR5 memory with the GeForce GT 1030, which are connected using a 64-bit memory interface. The GPU is operating at a frequency of 1228 MHz, which can be boosted up to 1468 MHz, memory is running at 1502 MHz (6 Gbps effective).Being a single-slot card, the NVIDIA GeForce GT 1030 does not require any additional power connector, its power draw is rated at 30 W maximum. Display outputs include: 1x DVI, 1x HDMI 2.0. GeForce GT 1030 is connected to the rest of the system using a PCI-Express 3.0 x4 interface. The card’

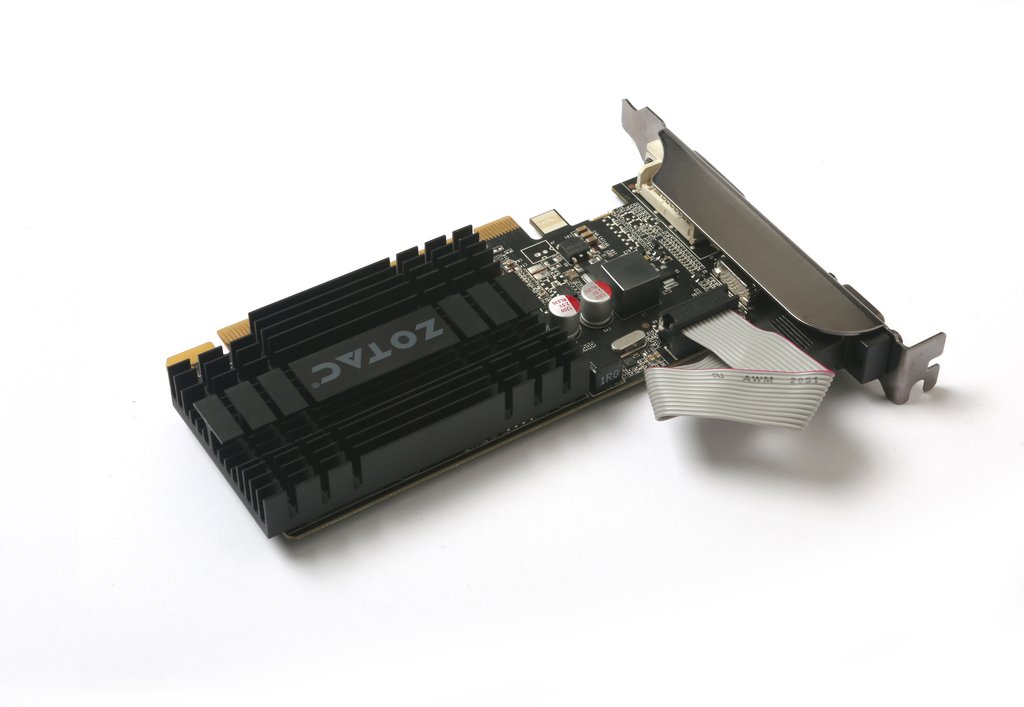

5. GT 710

The Nvidia GeForce GT 710 is an entry-level desktop graphics card based on the old GK208 chip of Kepler architecture. It is manufactured in 28nm by TSMC and can be equipped with a maximum of 2 GB DDR3-VRAM, which is connected via a 64 bit memory bus (24.4 GB/s).The performance is on average slightly below that of the mobile GeForce MX 250 and therefore it is best suited for current games in low – medium detail level.The power consumption is relatively low and, according to Nvidia, specified at 19 Watts.
